GX Pro Series Technical Information

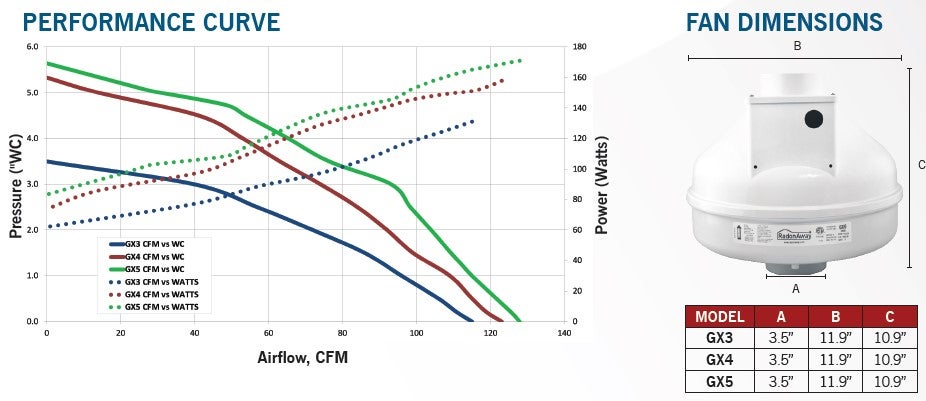

GX Pro Series Fan Performance and Curves
| Typical CFM vs. Static Pressure |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | P/N | Fan Duct Diameter | Watts | Recommended Max Operating Pressure "WC | 1.0" | 1.5" | 2.0" | 2.5" | 3.0" | 3.5" | 4.0" | 4.5" | 5.0" |
| GX3 | 28584 | 3" | 60-135 | 3.3 | 96 | 86 | 72 | 57 | 40 | - | - | - | - |
| GX4 | 28585 | 3" | 74-158 | 4.8 | - | - | - | 84 | 74 | 63 | 53 | 41 | - |
| GX5 | 28586 | 3" | 75-180 | 5.2 | - | - | - | 298 | 93 | 76 | 65 | 54 | 31 |
