How to Install a High Suction Blower
HS Blowers Performance Data and Curves
RadonAway HS Blower Installation

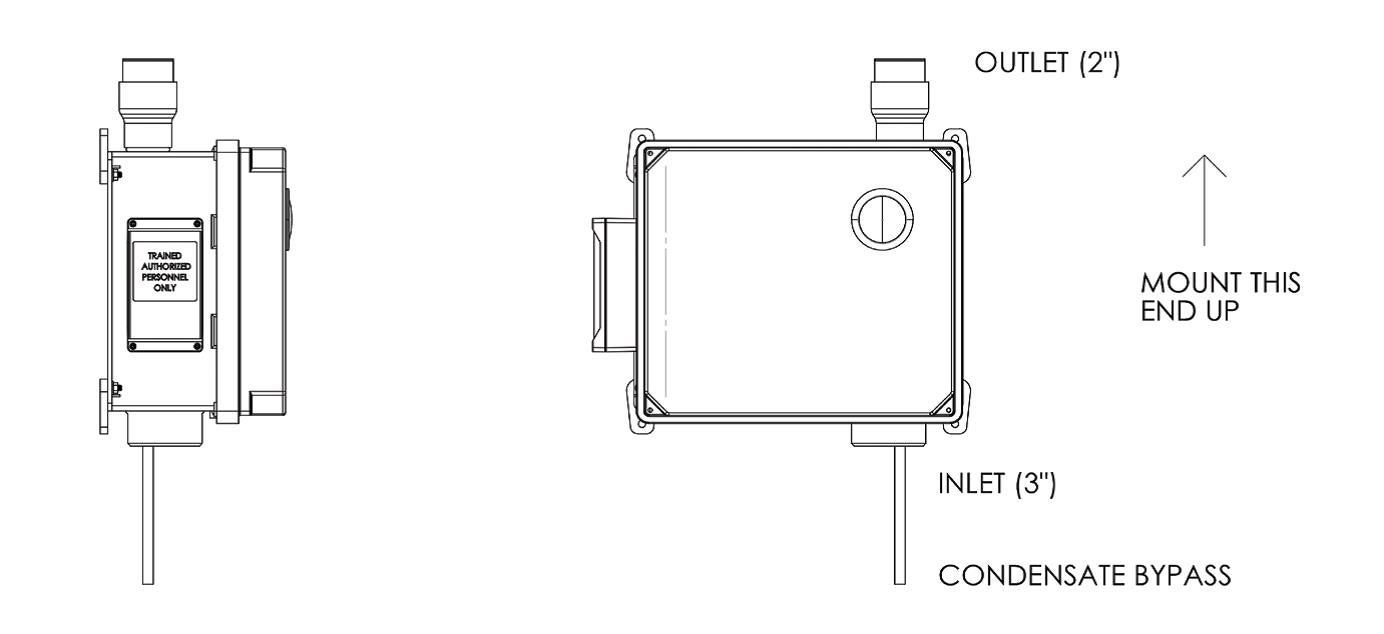

MOUNTING
Mount the HS2750 or HS5500 Blower to the wall studs, or similar structure, in the selected location with (4) 1/4” x 1 1/2” lag screws (not provided). Ensure the HS2750 or HS5500 Blower is both plumb and level.
DUCTING CONNECTIONS
Make final ducting connection to HS2750 or HS5500 Blower with flexible couplings. Ensure all connections are tight. Do not twist or torque inlet and outlet piping on HS2750 or HS5500 Blower or leaks may result. NOTE: Do NOT solvent weld fittings to unit hubs.
VENT MUFFLER INSTALLATION
Install the muffler assembly in the selected location in the outlet ducting. Solvent weld all connections. The muffler is normally installed above the roofline at the end of the vent pipe.
OPERATION CHECKS & ANNUAL SYSTEM MAINTENANCE
- Verify all connections are tight and leak-free. Ensure the HS2750 or HS5500 Blower and all ducting is secure and vibration-free.
- Verify system vacuum pressure with Magnehelic.
- Ensure vacuum pressure is within normal operating range and less than the maximum recommended as shown below:
HS2750: 5” WC (low) / 10” WC (medium) / 15” WC (high) / 20” WC (maximum)
HS5500: 20” WC (low) / 30” WC (medium) / 40” WC (high) / 50” WC (maximum)
Above are based on sea-level operation, at higher altitudes reduce above by about 4% per 1000 Feet. If these are exceeded, increase number of suction points. - Verify Radon levels by testing to applicable current industry standards and federal, state, county and local building codes and regulations.

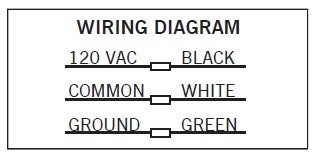

ELECTRICAL WIRING
HS2750 or HSHS5500 Blower models come with an electrical switch box for hard wiring to a 120V electrical source. All wiring must be performed in accordance with the National Fire Protection Association’s (NFPA)”National
Electrical Code, Standard #70”-current edition for all commercial and industrial work, and state and local building codes. All wiring must be performed by a qualified and licensed electrician. Outdoor installations require the use of a UL listed watertight conduit. Ensure that all exterior electrical boxes are outdoor rated and properly caulked to prevent water penetration into the box. A means, such as a weep hole, is recommended to drain the box.
SPEED CONTROLS
The HS2750 and HS5500 have 4-speed (low, medium, high, maximum) built-in speed controls. They are not safe for use with solid state speed controls.
IMPORTANT INSTRUCTIONS TO INSTALLER
Inspect the RadonAway® HS2750 or HS5500 Blower for shipping damage within 15 days of receipt. Notify RadonAway® of any damages immediately. RadonAway® is not responsible for damages incurred during shipping. Install the HS2750 or HS5500 Blower in accordance with all current industry standards and federal, state, county and local building codes and regulations. Provide a copy of this instruction or comparable radon system and testing information to the building occupants after completing system installation.
DO NOT CONNECT POWER SUPPLY UNTIL BLOWER IS COMPLETELY INSTALLED. MAKE SURE ELECTRICAL SERVICE TO BLOWER IS LOCKED IN “OFF” POSITION. DISCONNECT POWER BEFORE SERVICING.
1. WARNING! Do not use blower in hazardous environments where blower electrical system could provide ignition to combustible or flammable materials.
2. WARNING! Check voltage at the blower to ensure it corresponds with nameplate. See Vapor Intrusion Application Note #AN001 for important information on VI Applications. RadonAway.com/vapor-intrusion
3. WARNING! Normal operation of this device may affect the combustion airflow needed for safe operation of fuel burning equipment. Check for possible backdraft conditions on all combustion devices after installation.
4. All wiring must be performed in accordance with the National Fire Protection Association’s (NFPA) “National Electrical Code, Standard #70”-current edition for all commercial and industrial work, and state and local building codes. All wiring must be performed by a qualified and licensed electrician.
5. WARNING! In the event that the blower is immersed in water, return unit to factory for service before operating.
6. WARNING! Do not twist or torque blower inlet or outlet piping as leakage may result.
7. WARNING! Do not leave blower unit installed on system piping without electrical power for more than 48 hours Blower failure could result from this non-operational storage.
8. WARNING! TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
b) Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
WARRANTY
RadonAway® warrants that the HS2750/HS5500 Blower (the “Blower”) will be free from defects in materials and workmanship for a period of 12 months from the date of purchase or 18 months from the date of manufacture, whichever is sooner (the “Warranty Term”). RadonAway® will replace or repair any Blower which fails due to defects in materials or workmanship during the Warranty Term. This Warranty is contingent on installation of the blower in accordance with the instructions provided. This Warranty does not apply where any repairs or alterations have been made or attempted by others, or if the unit has been abused or misused. Warranty does not cover damage in shipment unless the damage is due to the negligence of RadonAway®. The Blower must be returned (at Owner’s cost) to the RadonAway® factory. Any Blower returned to the factory will be discarded unless the Owner provides specific instructions along with the Blower when it is returned regardless of whether or not the Blower is actually replaced under this warranty. Proof of purchase must be supplied upon request for service under this Warranty.
2-YEAR EXTENDED WARRANTY WITH INSTALLATION BY A FACTORY-CERTIFIED PROFESSIONAL
RadonAway® will extend the Warranty Term of the Blower to twenty-four (24) months from date of purchase or thirty (30) months from the date of manufacture, whichever is sooner, if: (1) the Blower is installed in a professionally designed and professionally installed active soil depressurization system or installed as a replacement Blower in a professionally designed and professionally installed active soil depressurization system; and (2) proof of an installer Factory Training Certificate. Upon request, proof of purchase and/or proof of professional installation may be required for service under this warranty. No extended warranty is offered outside the Continental United States and Canada beyond the standard 12 months from the date of purchase or 18 months from the date of manufacture, whichever is sooner. RadonAway® is not responsible for installation, removal or delivery costs associated with this Warranty.
EXCEPT AS STATED ABOVE, THE HS2750/HS5500 BLOWERS ARE PROVIDED WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL RADONAWAY BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING OUT OF, OR RELATING TO, THE BLOWER OR THE PERFORMANCE THEREOF. RADONAWAY’S AGGREGATE LIABILITY HEREUNDER SHALL NOT IN ANY EVENT EXCEED THE AMOUNT OF THE PURCHASE PRICE OF SAID PRODUCT. THE SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY SHALL BE THE REPAIR OR REPLACEMENT OF THE PRODUCT, TO THE EXTENT THE SAME DOES NOT MEET WITH RADONAWAY’S WARRANTY AS PROVIDED ABOVE.
For service under this Warranty, contact RadonAway® for a Return Material Authorization (RMA) number and shipping information. No returns can be accepted without an RMA. If factory return is required, the customer assumes all shipping costs, including insurance, to and from factory.
RadonAway®
3 Saber Way
Ward Hill, MA 01835 USA
Tel (978) 521-3703 | Email returns@radonaway.com
